Auto Hematology Analyzer(VX-h560)

Hematology

Model: VX-h560

VX-h560 is a compact auto hematology analyzer. It delivers up to 60 samples per hour. Requires only 15μL whole blood for testing. Provides 5-part WBC differentiation with 25+ parameters. Equipped with a 10.4-inch TFT touch screen. Supports multi-language interface and large data storage. Ideal for clinical labs needing speed, precision, and reliability.

Download Catalog
AUTO HEMATOLOGY ANALYZER • 5-PART DIFF

VX-h560

AUTO HEMATOLOGY ANALYZER

25 PARAMETERS 3 HISTOGRAMS TÜV · CE

60/hr

THROUGHPUT

15μL

MIN. VOLUME

100K

RESULTS STORED

<25kg

PARAMETERS

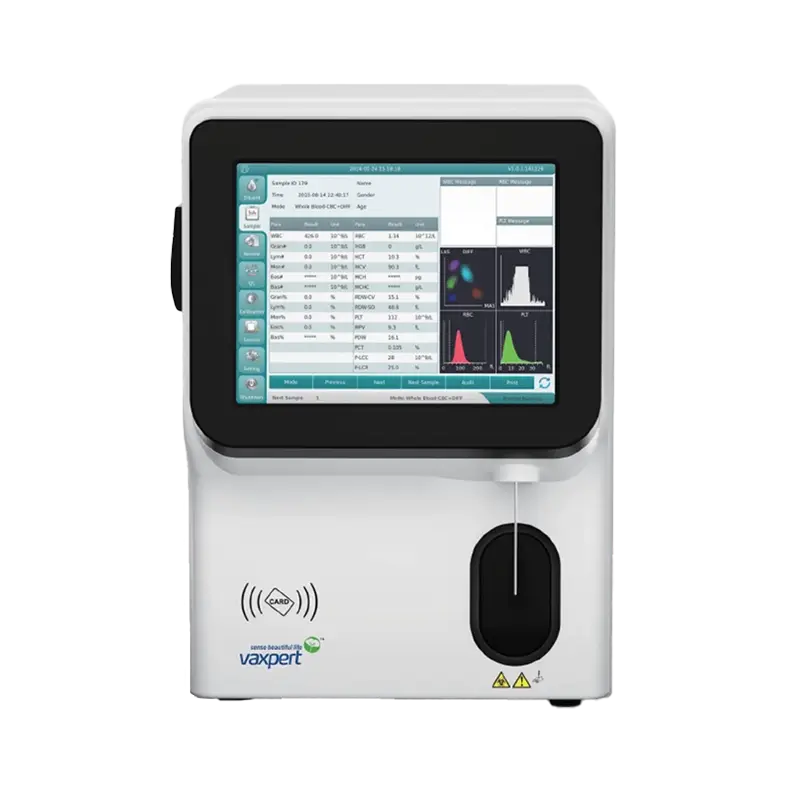

h560 Analyzer
THROUGHPUT

60/hr

Up to 60 samples per hour in whole blood mode.
Double-channel counting for maximum efficiency

Application

Where VX-h560
makes a difference.

Clinical Department

Emergency Laboratory

Medical Center

Research Laboratory

Examination Center

KEY FEATURES

Engineered for
advanced hematology diagnostics

High-performance 5-part differential hematology analyzer with advanced detection technology, low sample consumption, and reliable laboratory workflow.

60 samples/hour

Throughput up to 60 samples per hour with efficient processing performance for hospitals and clinical laboratories.

Whole Blood Mode Pre-diluted Mode

25 PARAMETERS

Provides 25 reportable parameters, 10 research parameters, 3 histograms, 3 DIFF scattergrams, and 1 BASO scattergram for detailed blood analysis.

3 Histograms DIFF Scattergram

Minimal Sample Volume

Low sample consumption with only 15μL whole blood, suitable for routine testing and limited sample availability.

15μL Whole Blood

Advanced Detection Technology

  • Sheath Flow Cytometry
  • Tri-angle Laser Scatter Technology
  • Impedance Method
  • Cyanide-free Hemoglobin Measurement

Cyanide-Free Laser Scatter Technology

100,000 Results Storage

Large storage capacity supporting up to 100,000 patient results including numeric and graphic information.

Large Storage Graphic Results

Flexible Reporting

Supports multiple report formats, external printer connection, LIS communication, and easy data management.

HL7 Protocol Multi-language
DETECTION

Dual-channel
precision
for complete blood
counts.

Smart Flagging (VDFM) + single layer scatter method for WBC differentiation Impedance method for RBC and PLT counting Colorimetric method for HGB Intelligent floating threshold eliminates manual adjustments

5-Part Diff

39 Parameters (29 Reportable + 10 Research)

WBC · Lymph# · Mon# · Neut# · Baso# · Eos# · Lymph% · Mon% · Neut% · Baso% · Eos% · RBC · HGB · MCV · MCH · MCHC · RDW‑CV · RDW‑SD · HCT · PLT · MPV · PDW · PCT · PLCC · PLCR · ALY# · ALY% · LIC# · LIC% · PLT‑I (PLT‑O optional)

performance

Comprehensive performance metrics for hematology parameters (Linearity & Carryover)

Parameter Linearity Range Carryover
WBC 0–500*10^9/L 0.5%
RBC 0–8*10^12/L 0.5%
PLT 0–5000*10^9/L 1%
HGB 0–250 g/L 0.5%
Technical Specs

Every detail matters.

Principle
Sheath flow cytometry (FCM) + tri-angle laser scatter method for WBC 5-part differential analysis and WBC counting Impedance method for RBC and PLT counting Cyanide free reagent for hemoglobin measurement
THROUGHPUT
60 samples/hour

Whole blood mode

SAMPLE VOLUME
Whole blood: 15 µL

Prediluted blood: 20 µL

Detection Principle
Sheath flow cytometry + tri-angle laser scatter

Impedance for RBC/PLT, cyanide-free hemoglobin

PARAMETERS
25 Report Parameters

+ 10 Research Parameters, 3 Histograms, 3 Diff Scattergrams, 1 BASO Scattergram

Reagents
DIL-5 Diluent, e5-diff lyse, e5-Ih lyse

Probe cleaner

DISPLAY
10.4" TFT Touch Screen
STORAGE
Up to 100,000 results

Including numeric and graphic information

communication
LAN port

4 USB ports

Printer
External laser/inkjet printer

Various protocol formats supported

Operating Enviroment
Temperature: 10–30°C

Humidity: 20–85%, Air Pressure: 70–106 kPa

Power Requirement
100–240V AC, 50/60Hz
Dimension
420 × 300 × 430 mm
Weight
≤ 25 kg
messages.language
English, Chinese, Portuguese, Spanish, Russian, French
Certifications
TÜV · CE
